cef下载编译

Qter

https://blog.csdn.net/weixin_40355471/article/details/120762849

CEF( Chromium Embedded Framework Chromium嵌入式框架)

编译环境：cmake-3.21.0-rc3+qt5.13.0+vs2017.

资源下载

cmake官网下载地址，选择Windows x64 ZIP版本：

https://cmake.org/download/

CEF是二次构建，下载源码包：

https://cef-builds.spotifycdn.com/index.html#windows32

我下载的是：cef_binary_85.3.12+g3e94ebf+chromium-85.0.4183.121_windows32.tar.bz2

https://bitbucket.org/chromiumembedded/cef/downloads/?tab=branches

4183

cd6cbe0

2020-10-24

zip gz bz2

CEF库libcef_dll_wrapper.lib的编译

资源下载后解压缩，使用cmake打开，选择源码路径和构建目录，点击configure选择vs2017，再点击generate生成vs工程文件。

在构建目录下生成了cef.sln文件，使用vs2017打开，构建libcef_dll_wrapper即可生成静态库libcef_dll_wrapper.lib，debug和release版本都可以构建。

（ps，libcef_dll_wrapper和cefsimple工程，属性-配置属性-C/C+±代码生成-运行库，debug模式下都选多线程调试(/MTd)，release模式下都选择多线程(/MT)）

cefsimple样例编译运行

构建生成libcef_dll_wrapper.lib后，编译cefsimple工程，在\build\tests\cefsimple\Debug\目录生成cefsimple.exe可执行文件，双击打开程序默认访问google网站(需要fq)，打开源码中\cef_binary_85.3.12_windows32\tests\cefsimple\simple_app.cc文件，把默认访问网址修改为https://www.baidu.com，即可正常访问。

效果图

遇到的问题

1、C2440 “初始化”: 无法从“R (__cdecl *)(base::internal::BindStateBase *,conditional<_Test,const std::string&,const std::string&>::type)”转换为“PolymorphicInvoke” libcef_dll_wrapper

刚开始下载的CEF版本是：cef_binary_94.4.9+g09ee681+chromium-94.0.4606.71_windows32，使用这个版本编译libcef_dll_wrapper工程时会报这个错误，最后选择较稳定的版本(cef_binary_85.3.12+g3e94ebf+chromium-85.0.4183.121_windows32.tar.bz2)，规避这个错误。

2、MSB3073命令“setlocal；c101008d Failed to write the updated manifest to the resource of file

编译cefsimple工程时，在debug模式下会报这两个错误，release模式不报错；

解决：项目-属性-配置属性-链接器-调试，把生成调试信息改为否，即可解决。

————————————————

版权声明：本文为CSDN博主「架相」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。

原文链接：https://blog.csdn.net/weixin_40355471/article/details/120762849

Qter

https://www.likecs.com/show-203544182.html

[backcolor=transparent !important]一、下载cef

[backcolor=transparent !important]http://opensource.spotify.com/cefbuilds/index.html

[backcolor=transparent !important]二、cmake编译

[backcolor=transparent !important]

[backcolor=transparent !important]三、vs2017编译

[backcolor=transparent !important]1.打开build里面编译好的cef.sln项目

[backcolor=transparent !important]2.debug win32模式下出现以下问题

[backcolor=transparent !important]2-1.debug配置 生成事件-生成后事件 执行异常

[backcolor=transparent !important]

Windows：32位调试版本无法使用cef_sandbox.lib添加清单

[backcolor=transparent !important]如上，看起来这只是Debug版本的问题，您必须在链接器选项中关闭生成调试信息。分别对cefclient,cefsimple,ceftests三个项目关闭生成调试信息，release版本是没这个问题的。

[backcolor=transparent !important]2-2.ceftests项目未找到匹配令牌

[backcolor=transparent !important]替换"か"为"demo"

[backcolor=transparent !important]

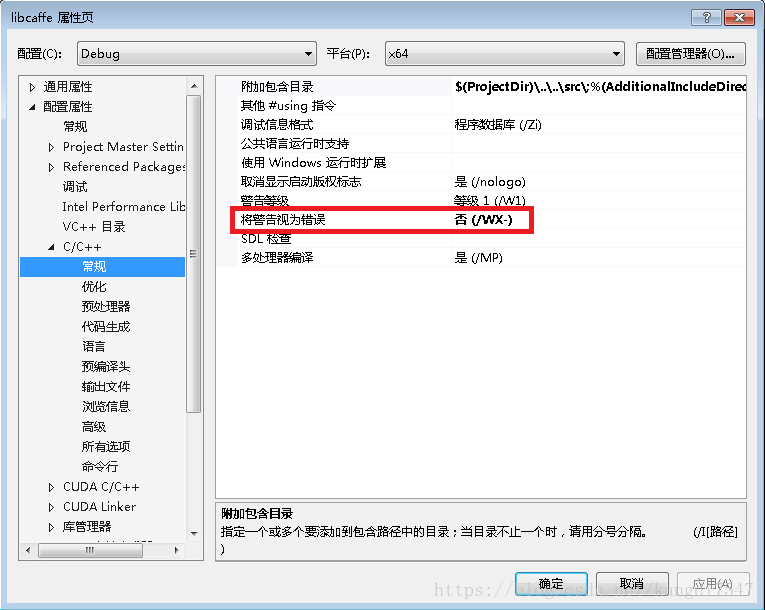

[backcolor=transparent !important]2-3.警告被视为错误

[backcolor=transparent !important]

[backcolor=transparent !important]配置-c/c++-常规-将警告视为错误改为否

Qter

---------------debug编译----------------
1. 替换"か"为"demo"


2. error C2220: 警告被视为错误 - 没有生成“object”文件

VS2017菜单 - 项目 - 属性 - 配置属性 - C/C++ - 常规 - 将警告视为错误 修改为 否，重新编译即可。

3. eneral error c101008d: Failed to write the updated manifest to the resource of file

删除生成后事件

1. <font face="-apple-system, SF UI Text, Arial, PingFang SC, Hiragino Sans GB, Microsoft YaHei, WenQuanYi Micro Hei, sans-serif, SimHei, SimSun"><font color="#4d4d4d">setlocal

2. mt.exe -nologo -manifest "E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/tests/ceftests/resources/win/ceftests.exe.manifest" "E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/tests/ceftests/resources/win/compatibility.manifest" -outputresource:"E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/ceftests.exe";#1

3. if %errorlevel% neq 0 goto :cmEnd

4. :cmEnd

5. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

6. :cmErrorLevel

7. exit /b %1

8. :cmDone

9. if %errorlevel% neq 0 goto :VCEnd

10. setlocal

11. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/chrome_elf.dll E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/chrome_elf.dll

12. if %errorlevel% neq 0 goto :cmEnd

13. :cmEnd

14. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

15. :cmErrorLevel

16. exit /b %1

17. :cmDone

18. if %errorlevel% neq 0 goto :VCEnd

19. setlocal

20. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/d3dcompiler_47.dll E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/d3dcompiler_47.dll

21. if %errorlevel% neq 0 goto :cmEnd

22. :cmEnd

23. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

24. :cmErrorLevel

25. exit /b %1

26. :cmDone

27. if %errorlevel% neq 0 goto :VCEnd

28. setlocal

29. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/libcef.dll E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/libcef.dll

30. if %errorlevel% neq 0 goto :cmEnd

31. :cmEnd

32. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

33. :cmErrorLevel

34. exit /b %1

35. :cmDone

36. if %errorlevel% neq 0 goto :VCEnd

37. setlocal

38. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/libEGL.dll E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/libEGL.dll

39. if %errorlevel% neq 0 goto :cmEnd

40. :cmEnd

41. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

42. :cmErrorLevel

43. exit /b %1

44. :cmDone

45. if %errorlevel% neq 0 goto :VCEnd

46. setlocal

47. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/libGLESv2.dll E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/libGLESv2.dll

48. if %errorlevel% neq 0 goto :cmEnd

49. :cmEnd

50. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

51. :cmErrorLevel

52. exit /b %1

53. :cmDone

54. if %errorlevel% neq 0 goto :VCEnd

55. setlocal

56. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/snapshot_blob.bin E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/snapshot_blob.bin

57. if %errorlevel% neq 0 goto :cmEnd

58. :cmEnd

59. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

60. :cmErrorLevel

61. exit /b %1

62. :cmDone

63. if %errorlevel% neq 0 goto :VCEnd

64. setlocal

65. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/v8_context_snapshot.bin E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/v8_context_snapshot.bin

66. if %errorlevel% neq 0 goto :cmEnd

67. :cmEnd

68. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

69. :cmErrorLevel

70. exit /b %1

71. :cmDone

72. if %errorlevel% neq 0 goto :VCEnd

73. setlocal

74. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_directory E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Debug/swiftshader E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/swiftshader

75. if %errorlevel% neq 0 goto :cmEnd

76. :cmEnd

77. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

78. :cmErrorLevel

79. exit /b %1

80. :cmDone

81. if %errorlevel% neq 0 goto :VCEnd

82. setlocal

83. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/cef.pak E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/cef.pak

84. if %errorlevel% neq 0 goto :cmEnd

85. :cmEnd

86. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

87. :cmErrorLevel

88. exit /b %1

89. :cmDone

90. if %errorlevel% neq 0 goto :VCEnd

91. setlocal

92. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/cef_100_percent.pak E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/cef_100_percent.pak

93. if %errorlevel% neq 0 goto :cmEnd

94. :cmEnd

95. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

96. :cmErrorLevel

97. exit /b %1

98. :cmDone

99. if %errorlevel% neq 0 goto :VCEnd

100. setlocal

101. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/cef_200_percent.pak E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/cef_200_percent.pak

102. if %errorlevel% neq 0 goto :cmEnd

103. :cmEnd

104. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

105. :cmErrorLevel

106. exit /b %1

107. :cmDone

108. if %errorlevel% neq 0 goto :VCEnd

109. setlocal

110. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/cef_extensions.pak E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/cef_extensions.pak

111. if %errorlevel% neq 0 goto :cmEnd

112. :cmEnd

113. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

114. :cmErrorLevel

115. exit /b %1

116. :cmDone

117. if %errorlevel% neq 0 goto :VCEnd

118. setlocal

119. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/devtools_resources.pak E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/devtools_resources.pak

120. if %errorlevel% neq 0 goto :cmEnd

121. :cmEnd

122. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

123. :cmErrorLevel

124. exit /b %1

125. :cmDone

126. if %errorlevel% neq 0 goto :VCEnd

127. setlocal

128. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_if_different E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/icudtl.dat E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/icudtl.dat

129. if %errorlevel% neq 0 goto :cmEnd

130. :cmEnd

131. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

132. :cmErrorLevel

133. exit /b %1

134. :cmDone

135. if %errorlevel% neq 0 goto :VCEnd

136. setlocal

137. E:\gitcode\ElectronLab\mCloudQt\cmake\cmake-3.21.0-rc3-windows-x86_64\bin\cmake.exe -E copy_directory E:/gitcode/ElectronLab/mCloudQt/cef/cef_binary_85.3.13+gcd6cbe0+chromium-85.0.4183.121_windows32/Resources/locales E:/gitcode/ElectronLab/mCloudQt/cef/chromiumembedded-cef-cd6cbe008b12/build/tests/ceftests/Debug/locales

138. if %errorlevel% neq 0 goto :cmEnd

139. :cmEnd

140. endlocal & call :cmErrorLevel %errorlevel% & goto :cmDone

141. :cmErrorLevel

142. exit /b %1

143. :cmDone

144. if %errorlevel% neq 0 goto :VCEnd</font></font>

复制代码

-----release编译----

1. error C2220: 警告被视为错误 - 没有生成“object”文件

VS2017菜单 - 项目 - 属性 - 配置属性 - C/C++ - 常规 - 将警告视为错误 修改为 否，重新编译即可。
